12.8V314Ah
Nominal Voltage 12.8V (4S LiFePO4)
Capacity 314Ah
Energy 4.02kWh
Charge Voltage 14.4V +- 0.2V
Discharge Cut-off 10.8V
Max Charge Current 100A (0.3C)
Max Discharge Current 300A (1C) continuous
Peak Discharge 600A (5 seconds)
Cycle Life 6,000+ cycles @ 80% DoD
Self-Discharge <=3% per month
Round-Trip Efficiency >=95%
Charge Temp 0C - 55C
Discharge Temp -20C - 55C

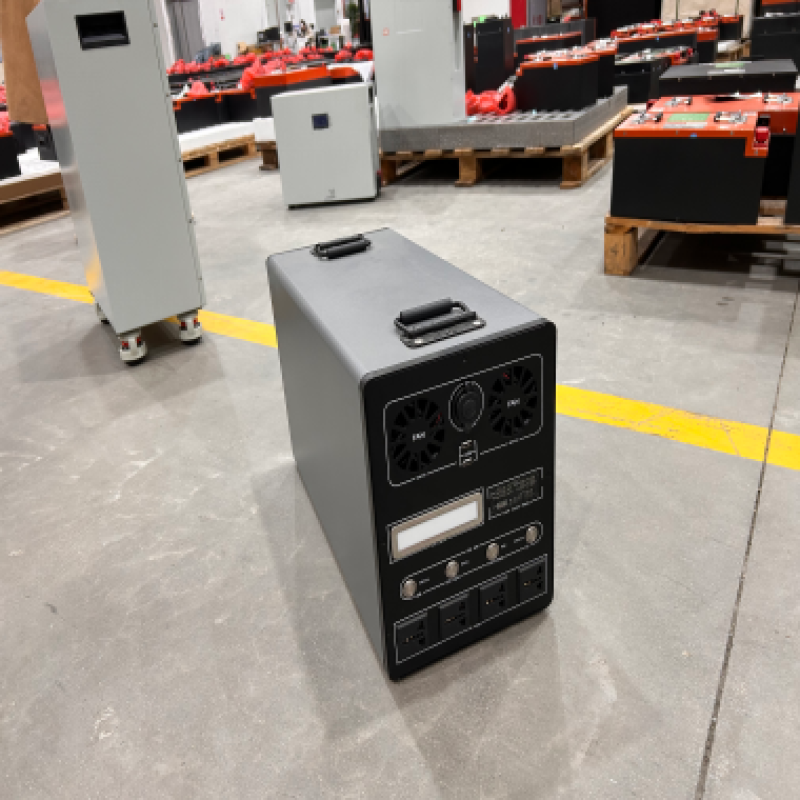

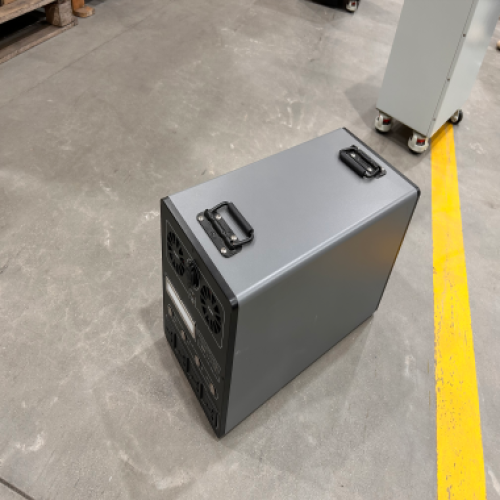

V-Link E 12.8V 314Ah LiFePO4 Battery
This high-capacity 4.02kWh energy storage module redefines the performance standards for a single 12V battery. Utilizing a proven 4S configuration and Grade-A LiFePO4 cells, it delivers double the capacity of traditional 150Ah models within a similar footprint—making it the ideal choice for space-constrained applications requiring maximum energy.
Weighing just ~32kg, this 314Ah module is 40% lighter than an equivalent lead-acid battery bank (which exceeds 80kg) yet offers a lifespan of over 6,000 cycles—10 to 15 times that of lead-acid batteries. An integrated smart Battery Management System (BMS) automatically handles all safety protections, while optional RS485/CAN interfaces and mobile app monitoring provide real-time visibility into battery status. Whether powering luxury yachts, fully off-grid cabins, or critical telecommunications sites, this 12.8V 314Ah battery delivers reliable energy with uncompromising performance.
Key Highlights
• 4.02kWh capacity, 12.8V nominal voltage (4S LiFePO4 configuration)
• 6,000+ cycles (at 80% DoD), 15+ year service life
• Grade-A LiFePO4 cells: safest chemistry, zero thermal runaway risk
• 314Ah capacity: double the energy of 150Ah models within the same footprint
• Smart BMS + mobile app: real-time monitoring of SOC, voltage, current, and temperature
• Weighs only ~32kg—60% lighter than equivalent lead-acid batteries (>80kg)
• Supports series and parallel connections: up to 4 in series (for 48V) and 4 in parallel (for 1256Ah)
• 10-year warranty with manufacturer support
